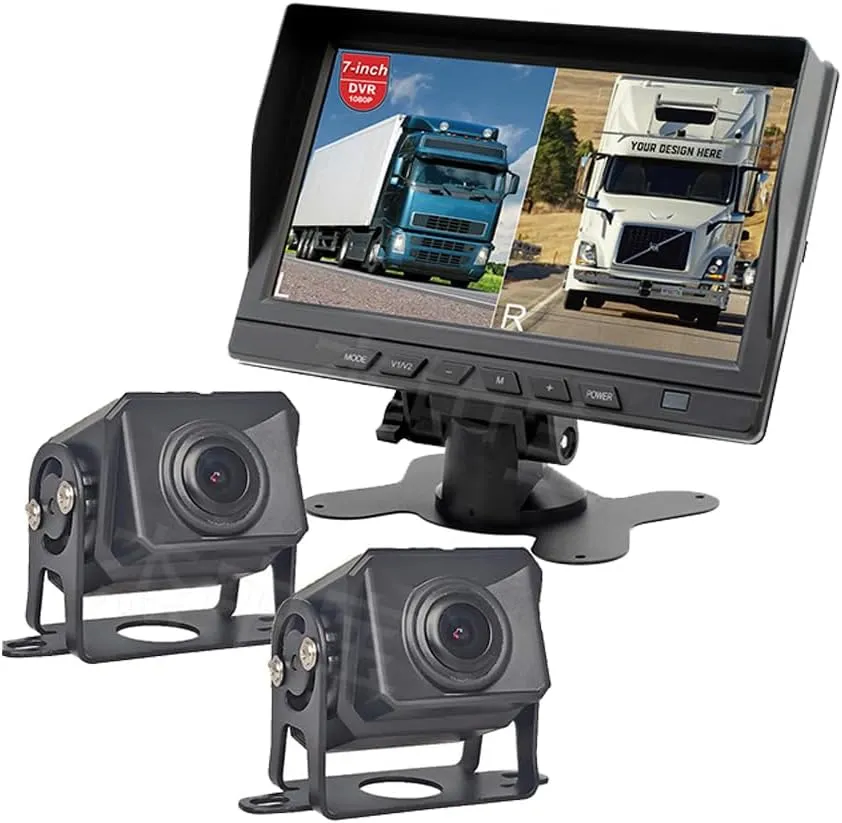

- 【Wired backup Camera System】This is the 1080P wired Backup camera System Which Included 7Inch AHD IPS monitor 2ch Split Screen display 1024X600 HD with DVR Loop Recorder and two IP69 1090P Front camera and Rear camera and one 5Meters and one 15Meters Aviation extension cable and one Cigratte lighter power supply

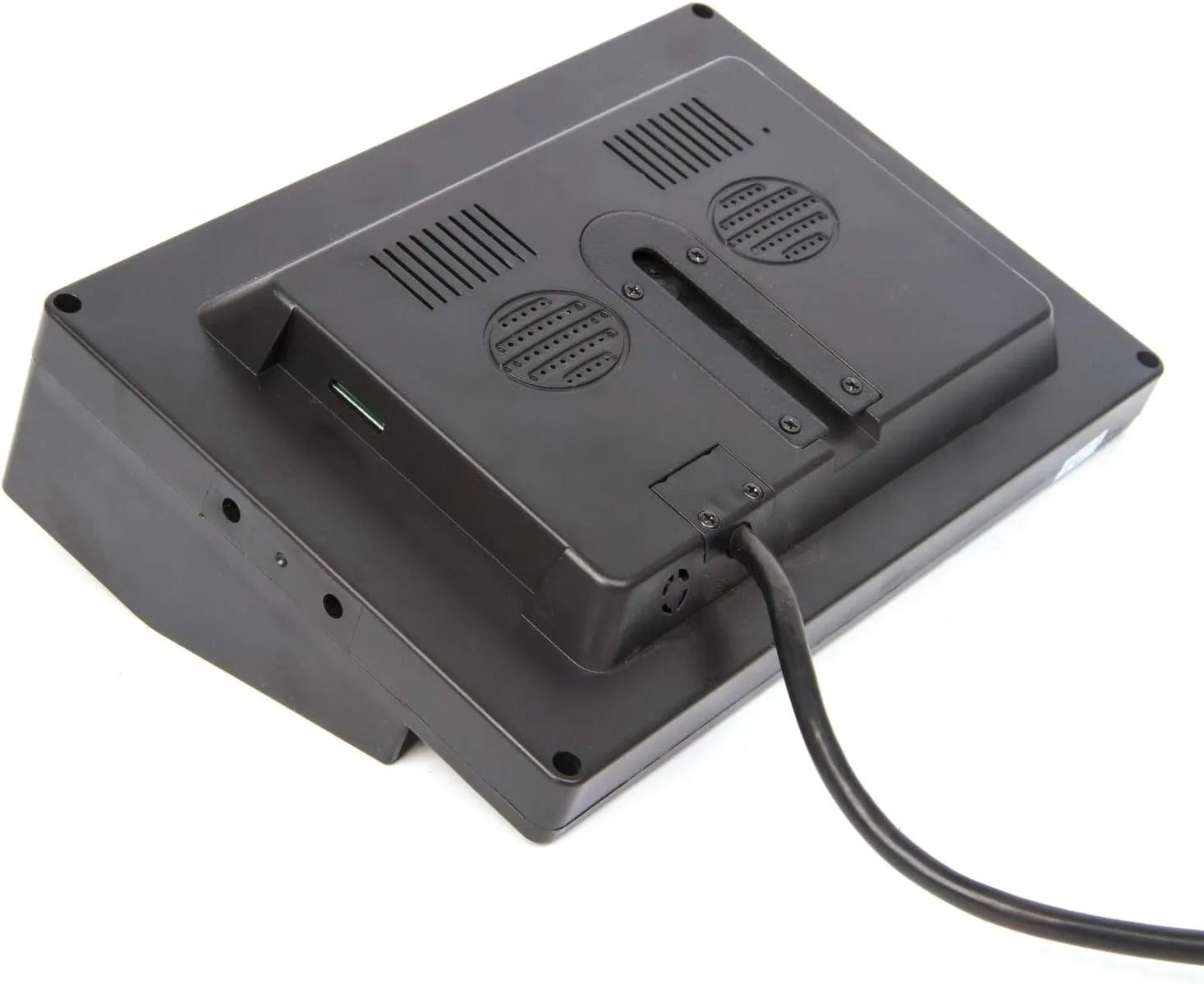

- 【7-inch AHD IPS monitor】With the Resolution 1024X600, this 7" Colour AHD IP Monitor is suitable for Cars, SUV, Van, RV, Trucks, Motorhomes, Trailers. The Monitor Bulit in the DVR Recprder. the TF Card Slot can support Up to 32G Card. Also The Monitor has 2ch 4-pin Aviation Video Input. it support 2ch Split screen diaplay with guide Line. you can view both front camera and Revertse camera on the screen at same time to keep you safe in the travel.

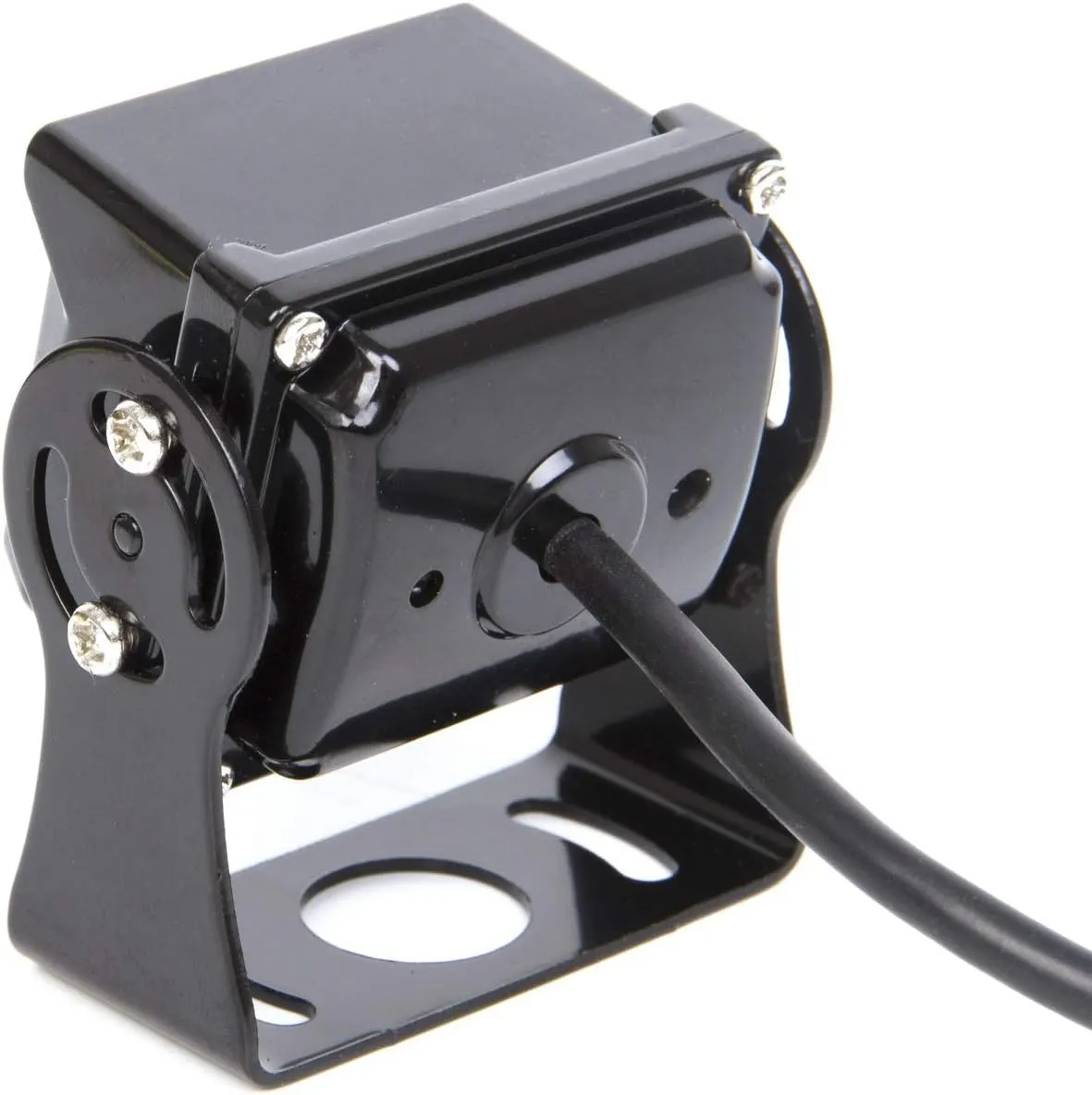

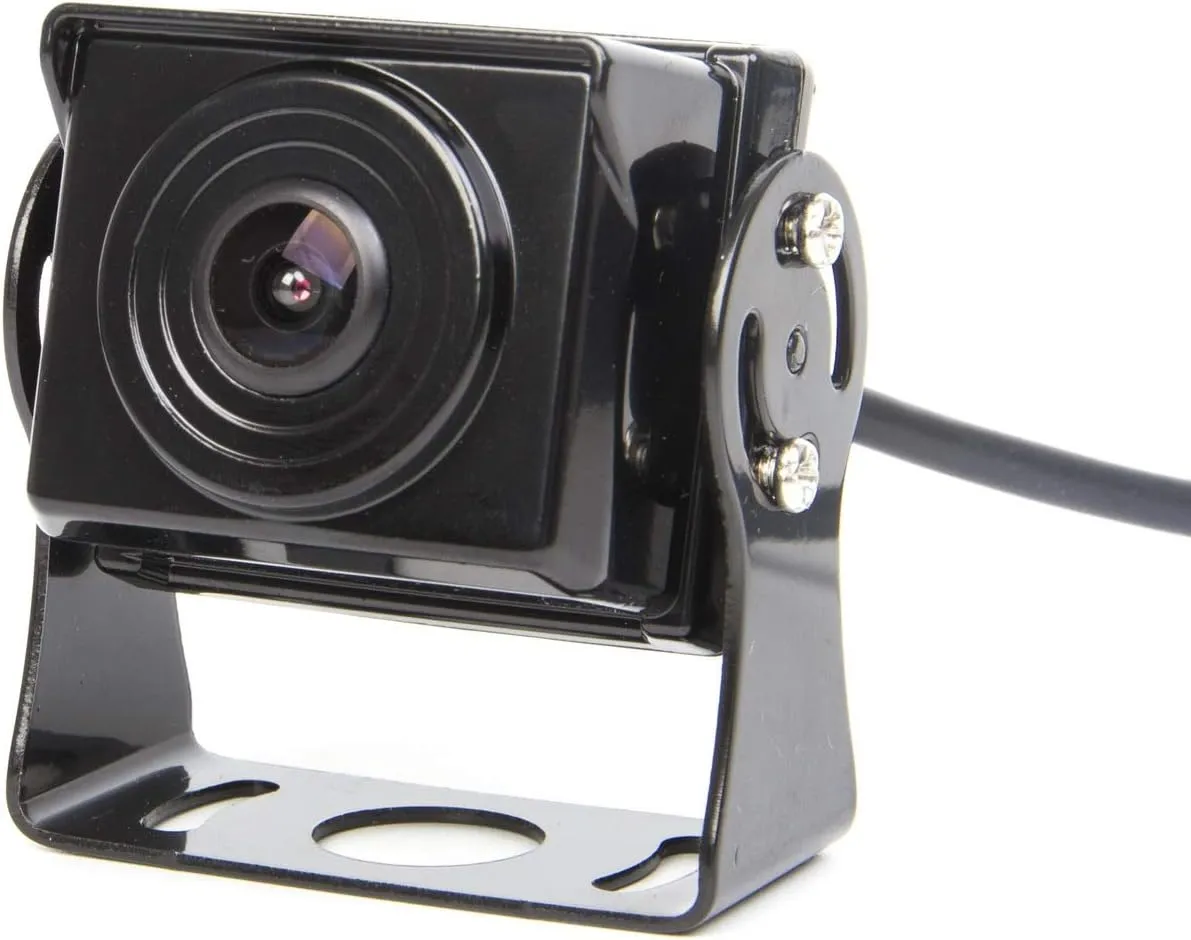

- [Waterproof Night Vision Camera] IP68 grade waterproof IR Vehicle Backup Cameras and 170° wide view angle to view the blind spots. No-light night vision camera.It can be clearly displayed at night or in bad weather.
- [Professional] 4Pins Aviation Connector Vehicle Backup Camera and monitor kit for Car RV Truck Bus Caravan Bus Motorhome, support 12V-24V power system.Hard wired connection guarantees safe and clear and stable reversing image.
Description:
●7 inch Full HD 1080P Dual Split Monitor support 5 display mode.
●Record Video: Front camera 1080P, backup camera 1080P。
●The video recorded in SD card（Secure Digital Memory Card）. Support Max SD card storage 32GB(not included).
●Dual Starlight Night Vision AHD Camera Simultaneously Recording
●This Car DVR has two cameras that allows for simultaneously recording videos from two different angles. Dual Split Screen display will let you have clear view from front and back-up camera .

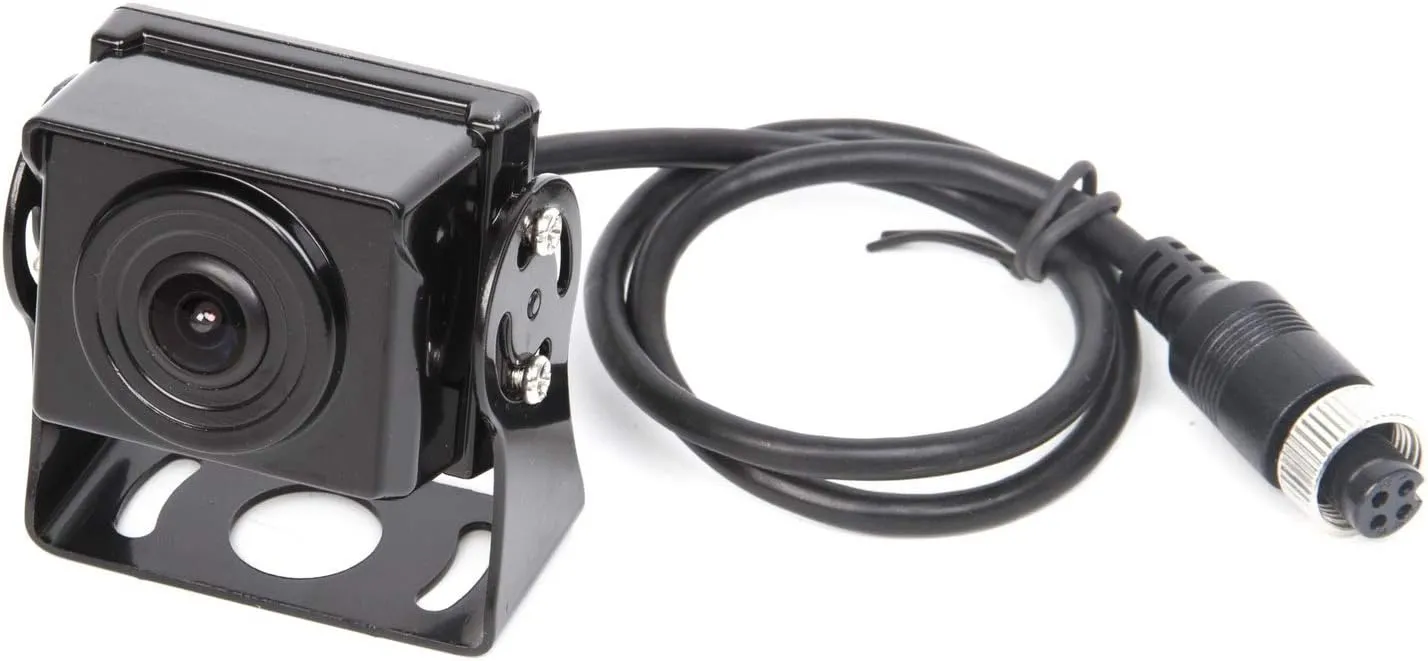

●Connecting 5M(16Ft) & 15M(49ft) 4Pin high quality anti interference extension cable waterproof for backup camera。
●If a vehicle collision occurs, the build-in G-Shock sensor automatically locks the recorded video providing an accurate record of events.Safer and More Convenient
Specifications:
Display : 7.0" Full HD ISP 1080P Dual Split Monitor
Camera Lens: Full HD 1080P
5.0M image AHD sensor with 150 degree view angle
Camera Effective Pixels: 1280*720 pixels
Video format: TS
Photo format:JPEG
Waterproof Grade: IP68
Night Vision Distance: 15M
Power: DC 9V-36V
Waterproof, Starlight Super Night Vision, Shockproof, No Interference, No Delay
Function Support: DVR, Reversing/Parking Assist
Features 1: Anti Vibration,Wide Dynamic Range,Cycle Recording
Features 2: G-sensor, Night Vision, Dual Lens, Reversing/Parking Assist
Package Included:
1x 7'' DVR Monitor
1x Monitor Dashboard Base
1x Front View Camera
1x Rear View Camera
1x 5M 4Pin Extension Cable
1x 15M 4Pin Extension Cable
1x Remote Control
1xDouble side sticker
- Package Dimensions : 11.7 x 9.5 x 4.5 inches; 4.1 Pounds
- Date First Available : June 10, 2020
- Manufacturer : Yasoca
- Country of Origin : China
